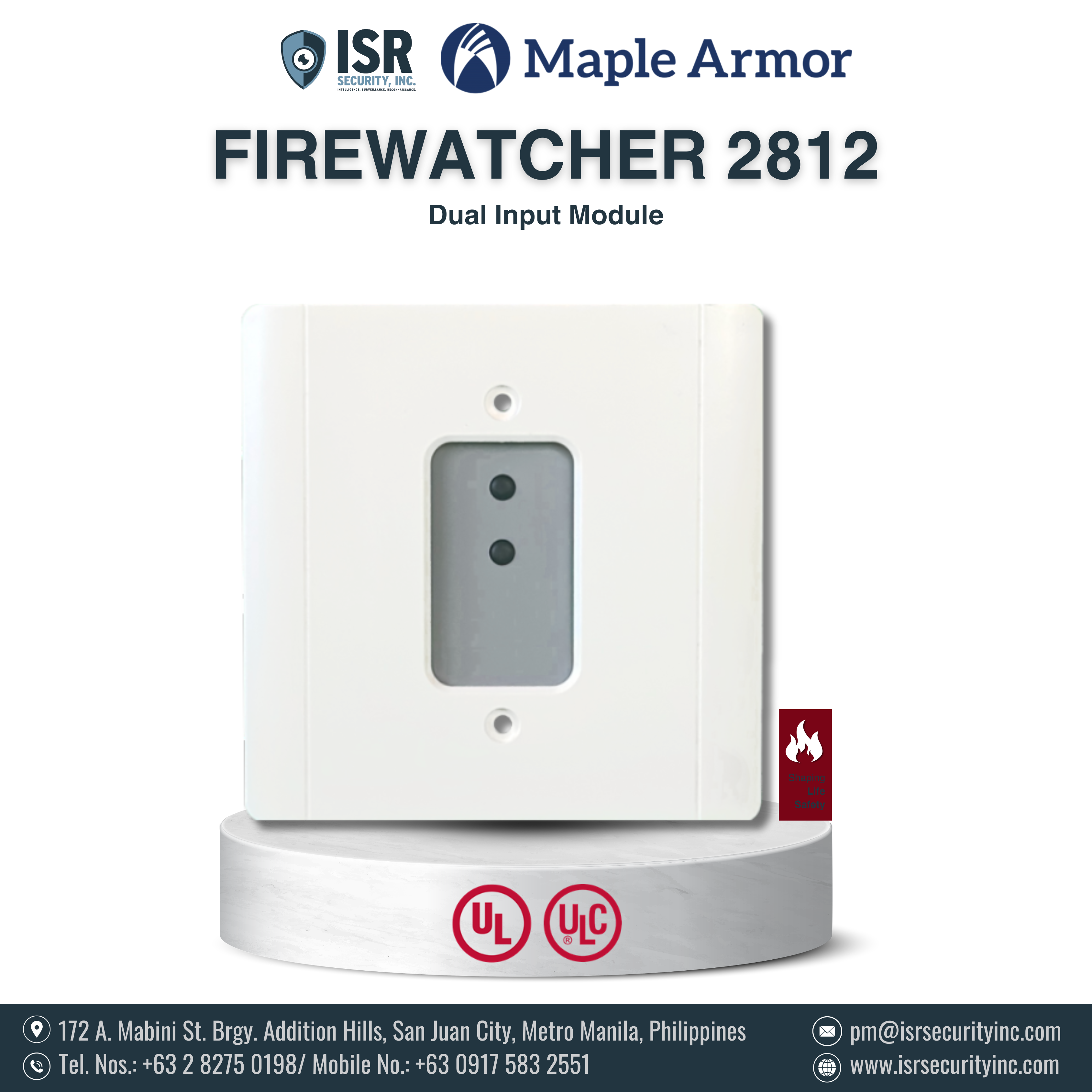

Maple Armor Fire Watcher 2812 - Dual Input Module

The FW2812 Dual Input Module is an intelligent, addressable device designed to operate with a Maple Armor fire alarm control panel(s).

It requires one single address on the signaling line circuit (SLC). It is used to connect two Alarm, Supervisory, Trouble, or Monitor-type dry contact Initiating Device Circuit (IDC). This is determined through the module’s programming options in the panel.

Features

• Durable material and solid parts

• Two visible status LED indicators for alarm and trouble

• Easy installation

• Supports two Class B inputs

• Input latched/non-latched selectable

• Mounts to a standard 4-inch square electrical box

• For dry indoor installation

• Up to 252 addressable devices per loop

• Address programmed via handheld programmer
