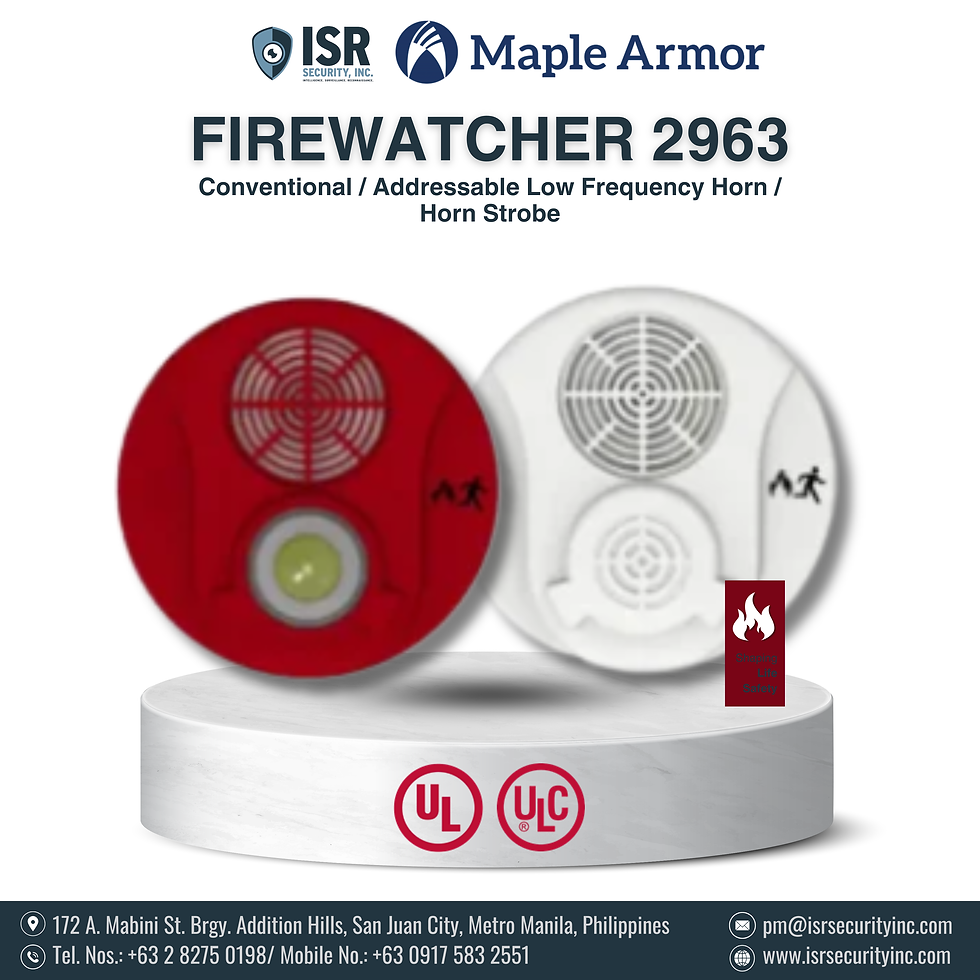

Maple Armor Fire Watcher 2963 & 2973 - Conventional / Addressable Horn Strobe
They are engineered to operate in conventional and addressable operation modes, offering unparalleled versatility for a wide range of applications. In addressable mode, each device is equipped with intelligent communication capabilities, allowing it to report its precise location and status directly to the control panel.
Features
- Modern design
- Conventional Mode
- Addressable Mode
- Code-compliant 520 Hz output.
- High-intensity LED light source
- Approved for ceiling and wall mounting
- Easy installation
- Fits on North American single-gang, 3.5” octagon, and 4” square electrical boxes
- Designed with energy efficiency
• More devices per circuit
• Longer circuit wire runs
• Lower wire gauge
• Less installation cost
- Six selectable strobe intensity
• 15, 30, 75, 110, 140, or 177 cd
- Two selectable sounder volumes
• High and Low
- Six Selectable horn patterns
• Temporal 3
• Temporal 4
• Steady
• March time 20 bpm
• March time 60 bpm
• March time 120 bpm
- Available in White and Red color finish
- Compatible with all Maple Armor control panels
